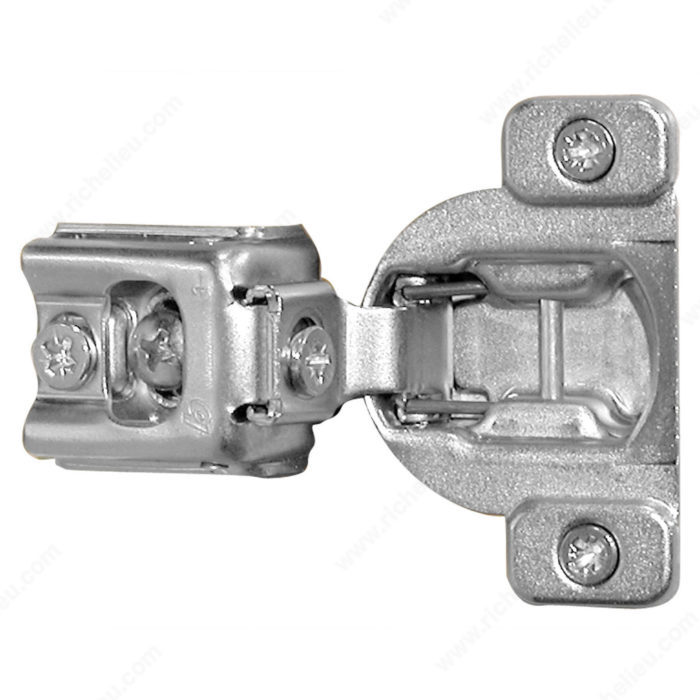

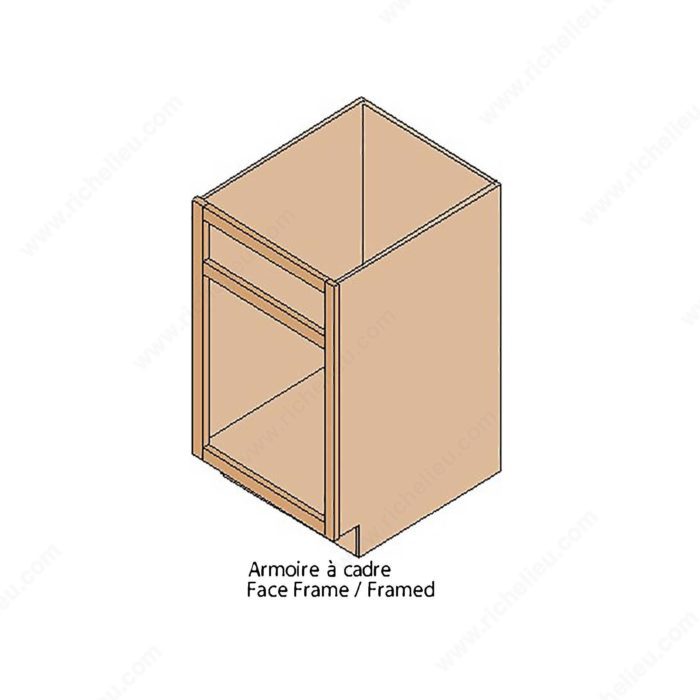

COMPACT hinges are concealed hinges for face frame cabinets. They are easy to use and are adjustable in side, height, and depth dimensions. They also work with small and large overlays. COMPACT hinges are a great option for a wide variety of face frame applications.

ADVANTAGES AND BENEFITS

– 110° opening angle
– One piece assembly
– Wraparound mount
– 1/2″ cup depth
– ±1/8″ height adjustment
– ±1/16″ side adjustment
– +3/32″, -1/32″ cam depth adjustment
– Steel, nickel-plated

IMPORTANT INFORMATION

The best way to clean your Blum fittings is as follows:

– Use a soft, lint-free cloth, a chamois leather or a sponge
– Ensure that the material you use to wipe the furniture with is just damp, not wet
– Always wipe the furniture again afterwards with a dry cloth
– If possible, use cleaning products intended specifically for materials such as leather, stainless steel etc.; otherwise, use only clean water
– Wipe off dirt as soon as it appears

AVOID THE FOLLOWING:

– using steam cleaners
– using cleaning products, such as abrasive cleaning powder, steel wool and scourers, as well as cleaning agents, such as acetone, chlorine, cellulose thinner and solutions whose names start with tri or tetra
– storing open cleaning products, baking powder, dishwasher products or table salt, for example. Fumes can cause corrosion on all metal surfaces.

APPLICATION

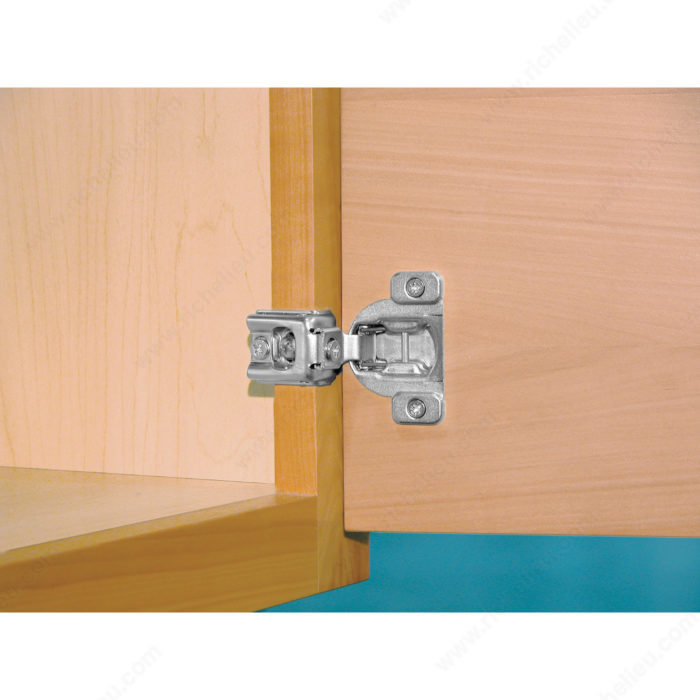

– For the installation of a door on a piece of furniture and/or a cabinet.

– Blum hinges are not made of stainless steel, therefore it is not recommended to use them for outdoor applications.
